Bird activity is one of the most important factors leading to line faults in power grid operation. In order to prevent birds from nesting and roosting on the towers, anti-bird spikes are usually installed in the tower area. Our Shenzhen True Bird Repellent Technology of Passive Spin Stacking Anti-Bird SpikesZQN-DL-XC, as a new type of anti-bird spikes device, solves some of the disadvantages of the traditional anti-bird spikes, and shows a better effect in the prevention of bird damage.

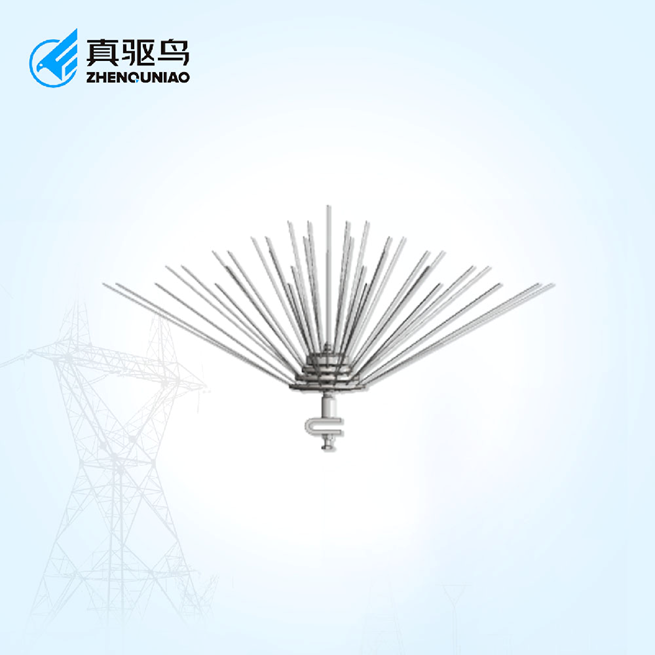

The passive rotating stack of anti-bird spikes mainly through the "dynamic rotation" and "reflective effect" to achieve effective repulsion of birds, the structure of the overall radial hemisphere, the needles are uniformly distributed on different levels, no gaps and hollow, the actual anti-bird range of up to 1 meter.
Working Principle
Dynamic rotation: Traditional anti-bird stingers are mostly static, birds are prone to adapt, resulting in the gradual weakening of the bird repellent effect. But the passive rotary stacking anti-bird stingers of each layer of stingers can be independently free to rotate and swing, when the wind blows or touched by birds, the equipment will automatically rotate, forming an irregular dynamic effect, so that birds can not adapt to, and difficult to approach, so as to achieve an effective repellent effect.
Reflective effect: The surface of the device has a specular reflective effect, which can form dynamic radial reflective spots under natural light. This reflection interferes with the birds' vision and serves as a warning and no-fly function. Birds can perceive the harshness and discomfort at a distance, thus actively avoiding the protected area.
Device Advantages
1, convenient installation: equipment installation only need to tighten two bolts and tower material fixed, the device can be automatically unfolded after standing up, no need to manually break open the steel spikes. This greatly saves installation time and reduces the risk of working at height.
2、Automatic closing: just hold the center of a few pinpricks, vertical lifting and ± 90 degrees in the direction of tipping, can be completed in 5 to 10 seconds to close, to avoid interference with maintenance operations.
3, corrosion-resistant and durable: the device is made of 304 stainless steel, corrosion-resistant, oxidation-resistant, not easy to rust, and can be used for a long time on outdoor towers.
